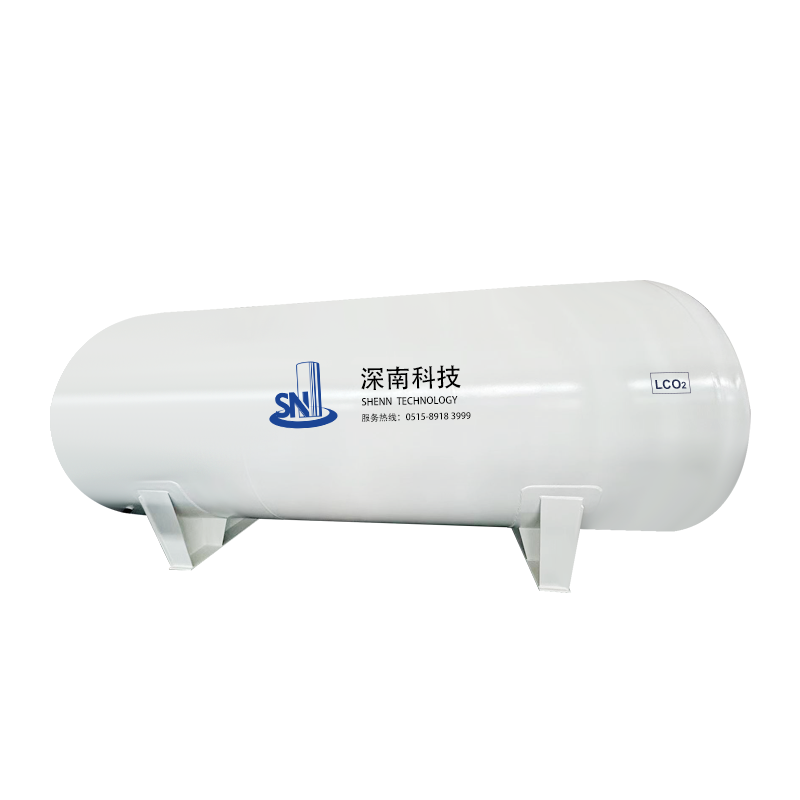

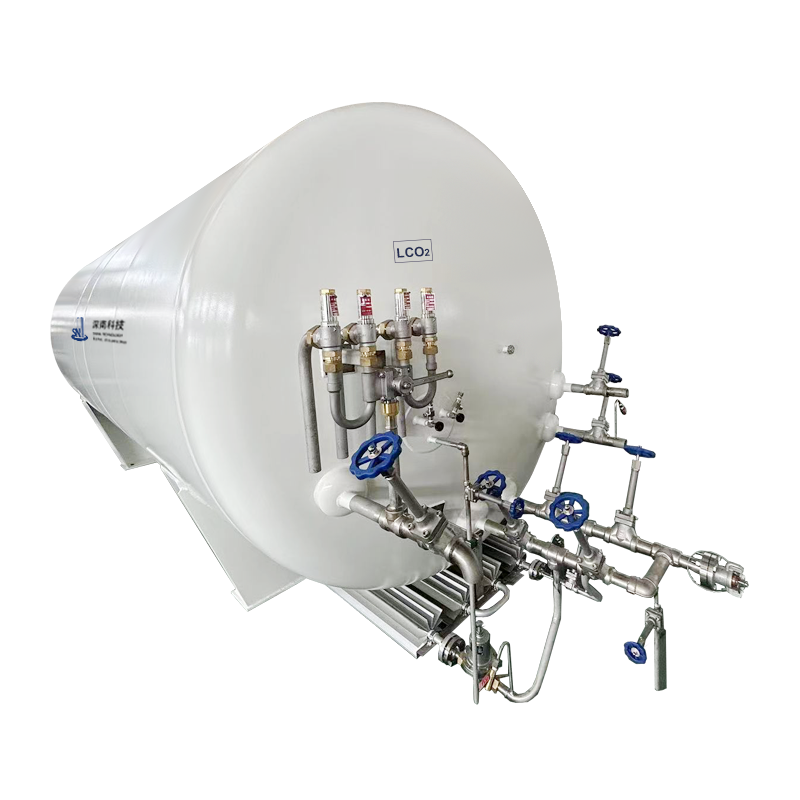

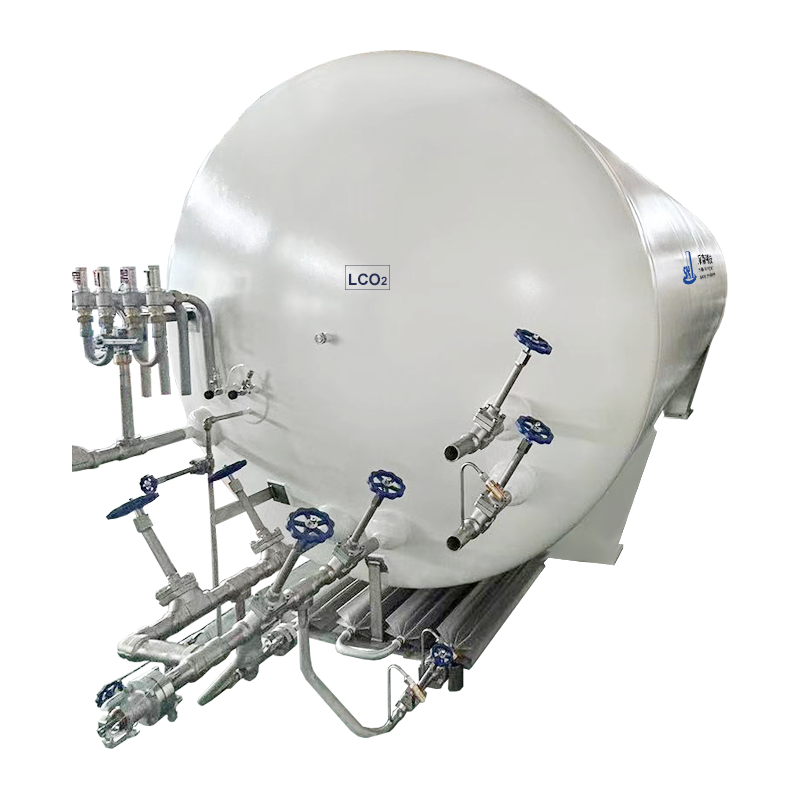

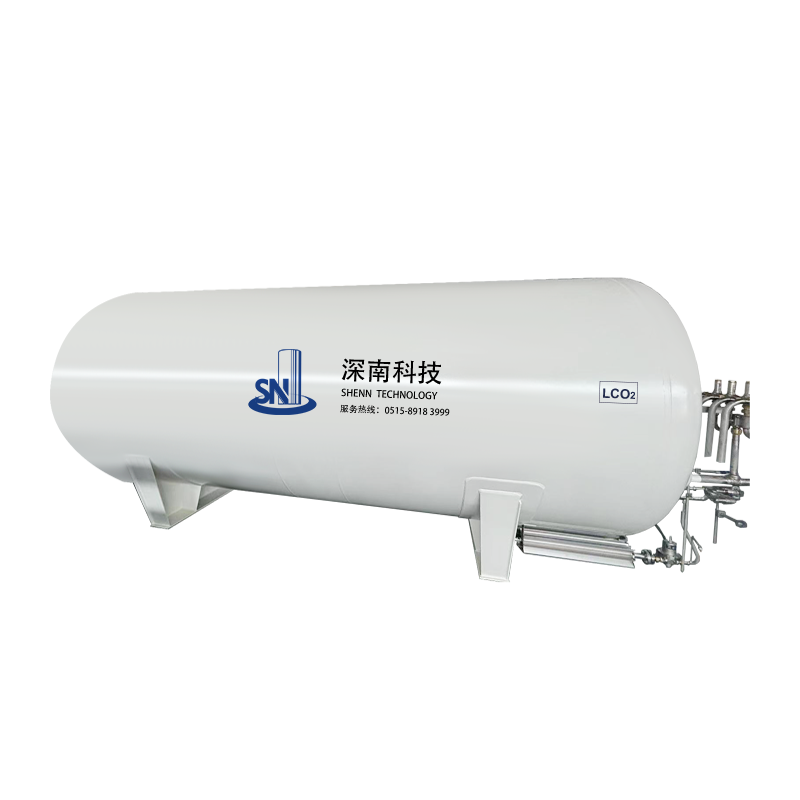

HT-C Horizontal Cryogenic Liquid Storage Tank for Efficient Storage
Product Advantages
●Excellent heat insulation performance: Our products have excellent heat insulation performance, which can effectively prevent heat transfer and ensure the best temperature control.
●Advanced vacuum technology: Our advanced vacuum technology ensures that our products are completely isolated from air and moisture, improving their overall performance and durability.
●Perfect piping system: Our well-designed piping system can ensure efficient and seamless fluid flow, minimizing leakage and interruption.
●Durable anti-corrosion coating: Our products adopt reliable and mature anti-corrosion coating to provide reliable anti-rust protection and prolong their service life. 5. Enhanced safety features: In addition to the above qualities, our products also have improved safety features, including sturdy construction and secure accessories, to ensure maximum user safety.
Features
● Advanced security measures: Our products are equipped with the most advanced security features such as biometric locks, encrypted data transmission, remote monitoring functions, etc., to provide users with maximum protection, prevent unauthorized access, and make users feel at ease .
● Intuitive user experience: We focus on user convenience when designing products. With intuitive interfaces, user-friendly controls, automated processes and quick setup options, our products ensure a simplified and hassle-free user experience.
● Minimize loss and waste: By adopting cutting-edge technology, our products minimize loss and waste. Whether by optimizing energy efficiency, increasing material utilization, or utilizing advanced monitoring systems, our products help reduce resource waste and maximize overall yield.
● Easy maintenance: We understand the importance of easy maintenance to our customers. That's why our products feature a modular design and removable components that make troubleshooting and repair a breeze. In addition, we provide comprehensive maintenance guidelines and timely assistance to ensure uninterrupted operations and minimize downtime.
Product Application
● Enhanced preservation and safety: In the medical industry, our products play a vital role in the careful preservation of liquefied gases used to store vaccines, blood products and other temperature-sensitive medical supplies. By ensuring a controlled environment, our products maintain the potency, quality and safety of these critical resources over time.
● Optimized performance and reliability: In the machinery industry, our liquefied gas storage solutions enable seamless operation and optimal performance of machinery. Our products take safety standards very seriously, providing reliable, safe storage options that support uninterrupted workflow and protect against any potential hazards.
● Reduce risk and improve efficiency: In the chemical industry, our products provide a safe and controlled storage environment for liquefied gases used in various processes such as refrigeration and heating. By minimizing the risk of spills and accidents, our solutions enhance safety measures and facilitate smooth operations, ultimately increasing efficiency.
● Quality assurance and freshness: In the food industry, our products ensure the safe storage of liquefied gas for freezing, preservation, carbonation and other food processing applications. By preventing contamination and maintaining the purity of these gases, our solutions safeguard the quality, taste and freshness of food.
● Safe and reliable aerospace operations: Our liquefied gas storage solutions for the aerospace industry guarantee maximum safety during transportation and use. Focused on efficient and secure storage, our products contribute to the smooth operation of propulsion, pressurization and temperature control systems in rockets, satellites and aircraft. Collectively, our innovative products are critical storage solutions for liquefied gases across multiple industries, ensuring safety, efficiency and product quality.

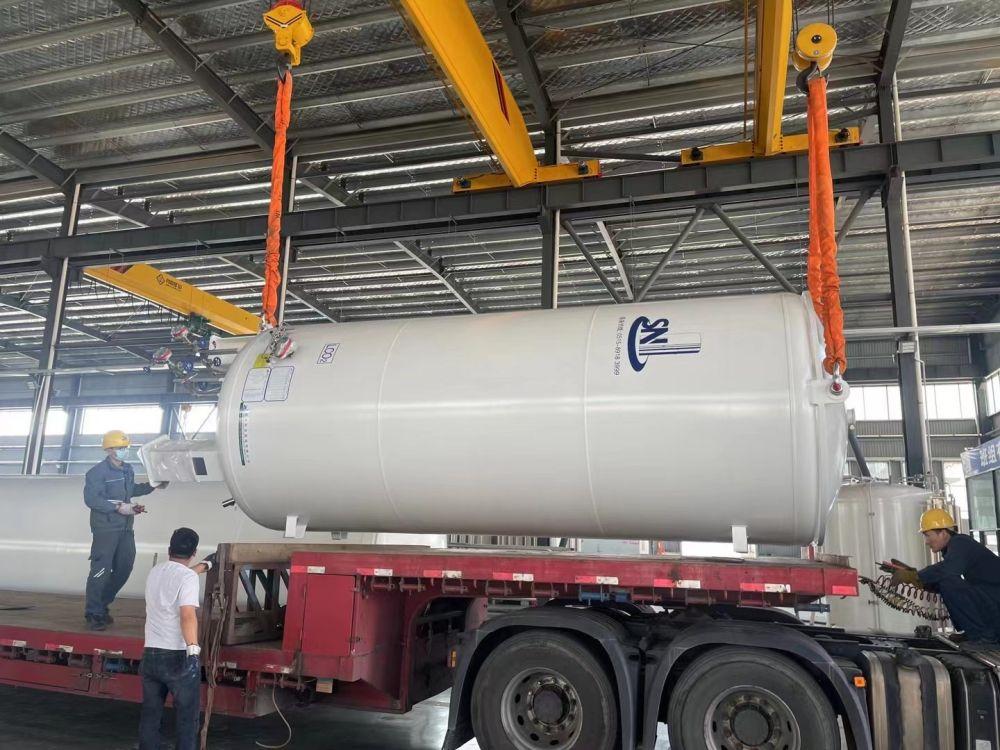

Departure Site

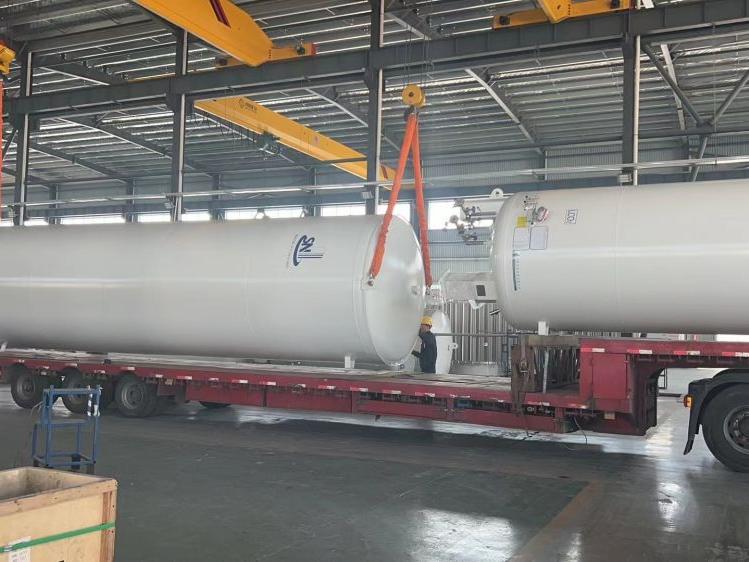

Production site
| Specification | Effective volume | Design pressure | Working pressure | Maximum allowable working pressure | Minimum design metal temperature | Vessel type | Vessel size | Vessel weight | Thermal insulation type | Static evaporation rate | Sealing vacuum | Design service life | Paint brand |
| m³ | MPa | MPa | MPa | ℃ | / | mm | Kg | / | %/d(O₂） | Pa | Y | / | |
| HT(Q)10/10 | 10.0 | 1.000 | ＜1.0 | 1.087 | -196 | Ⅱ | φ2166*2450*6200 | (4640) | Multi-layer winding | 0.220 | 0.02 | 30 | Jotun |
| HT(Q)10/16 | 10.0 | 1.600 | ＜1.6 | 1.695 | -196 | Ⅱ | φ2166*2450*6200 | (5250) | Multi-layer winding | 0.220 | 0.02 | 30 | Jotun |
| HTC10 | 10.0 | 2.350 | ＜2.35 | 2.446 | -40 | Ⅱ | φ2166*2450*6200 | 6330 | Multi-layer winding | ||||
| HT(Q)15/10 | 15.0 | 1.000 | ＜1.0 | 1.095 | -196 | Ⅱ | φ2166*2450*7450 | (5925) | Multi-layer winding | 0.175 | 0.02 | 30 | Jotun |
| HT(Q)15/16 | 15.0 | 1.600 | ＜1.6 | 1.642 | -196 | Ⅱ | φ2166*2450*7450 | (6750) | Multi-layer winding | 0.175 | 0.02 | 30 | Jotun |
| HTC15 | 10.0 | 2.350 | ＜2.35 | 2.424 | -40 | Ⅱ | φ2166*2450*7450 | (8100) | Multi-layer winding | ||||
| HT(Q)20/10 | 20.0 | 1.000 | ＜1.0 | 1.047 | -196 | Ⅱ | φ2516*2800*7800 | (7125) | Multi-layer winding | 0.153 | 0.02 | 30 | Jotun |
| HT(Q)20/16 | 20.0 | 1.600 | ＜1.6 | 1.636 | -196 | Ⅱ | φ2516*2800*7800 | (8200) | Multi-layer winding | 0.153 | 0.02 | 30 | Jotun |
| HTC20 | 10.0 | 2.350 | ＜2.35 | 2.435 | -40 | Ⅲ | φ2516*2800*7800 | 9720 | Multi-layer winding | ||||
| HT(Q)30/10 | 30.0 | 1.000 | ＜1.0 | 1.097 | -196 | Ⅱ | φ2516*2800*10800 | (9630) | Multi-layer winding | 0.133 | 0.02 | 30 | Jotun |
| HT(Q)30/16 | 30.0 | 1.600 | ＜1.6 | 1.729 | -196 | Ⅲ | φ2516*2800*10800 | (10930) | Multi-layer winding | 0.133 | 0.02 | 30 | Jotun |
| HTC30 | 10.0 | 2.350 | ＜2.35 | 2.412 | -40 | Ⅲ | φ2516*2800*10800 | 13150 | Multi-layer winding | ||||
| HT(Q)40/10 | 40.0 | 1.000 | ＜1.0 | 1.099 | -196 | Ⅱ | φ3020*3300*10000 | (12100) | Multi-layer winding | 0.115 | 0.02 | 30 | Jotun |
| HT(Q)40/16 | 40.0 | 1.600 | ＜1.6 | 1.713 | -196 | Ⅲ | φ3020*3300*10000 | (13710) | Multi-layer winding | 0.115 | 0.02 | 30 | Jotun |
| HT(Q)50/10 | 50.0 | 1.000 | ＜1.0 | 1.019 | -196 | Ⅱ | φ3020*3300*12025 | (15730) | Multi-layer winding | 0.100 | 0.03 | 30 | Jotun |
| HT(Q)50/16 | 50.0 | 1.600 | ＜1.6 | 1.643 | -196 | Ⅲ | φ3020*3300*12025 | (17850) | Multi-layer winding | 0.100 | 0.03 | 30 | Jotun |
| HTC50 | 10.0 | 2.350 | ＜2.35 | 2.512 | -40 | Ⅲ | φ3020*3300*12025 | 21500 | Multi-layer winding | ||||
| HT(Q)60/10 | 60.0 | 1.000 | ＜1.0 | 1.017 | -196 | Ⅱ | φ3020*3300*14025 | (20260) | Multi-layer winding | 0.095 | 0.05 | 30 | Jotun |
| HT(Q)60/16 | 60.0 | 1.600 | ＜1.6 | 1.621 | -196 | Ⅲ | φ3020*3300*14025 | (31500) | Multi-layer winding | 0.095 | 0.05 | 30 | Jotun |
| HT(Q)100/10 | 100.0 | 1.000 | ＜1.0 | 1.120 | -196 | Ⅲ | φ3320*3600*19500 | (35300) | Multi-layer winding | 0.070 | 0.05 | 30 | Jotun |
| HT(Q)100/16 | 100.0 | 1.600 | ＜1.6 | 1.708 | -196 | Ⅲ | φ3320*3600*19500 | (40065) | Multi-layer winding | 0.070 | 0.05 | 30 | Jotun |
| HT(Q)150/10 | 150.0 | 1.000 | ＜1.0 | 1.044 | -196 | Ⅲ | φ3820*22500 | 43200 | Multi-layer winding | 0.055 | 0.05 | 30 | Jotun |
| HT(Q)150/16 | 150.0 | 1.600 | ＜1.6 | 1.629 | -196 | Ⅲ | φ3820*22500 | 50200 | Multi-layer winding | 0.055 | 0.05 | 30 | Jotun |
Note:
1. The above parameters are designed to meet the parameters of oxygen, nitrogen and argon at the same time;
2. The medium can be any liquefied gas, and the parameters may be inconsistent with the table values;
3. The volume/dimensions can be any value and can be customized;
4. Q stands for strain strengthening, C refers to liquid carbon dioxide storage tank;
5. The latest parameters can be obtained from our company due to product updates.
